SAFEWAZE 022-12146 Adjustable SRL Ladder Anchor System, 4 or 6 FT Length

Ladder Anchors

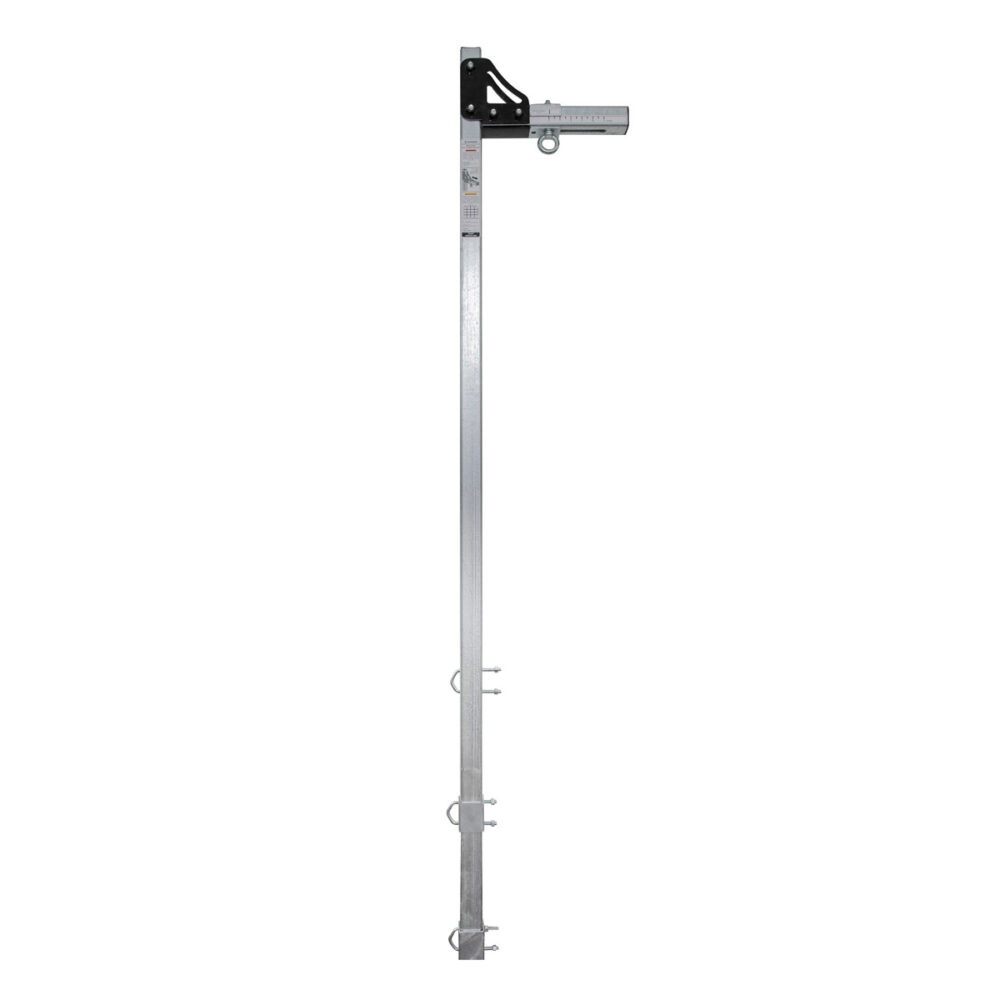

The Adjustable SRL Ladder Anchor System is an anchorage solution for self-retracting lifelines on fixed ladders. An adjustable captive eye allows for either sternal or dorsal harness connections. For permanent or temporary use, system attaches to existing ladder rungs with captive eye on top anchor extension bracket. Available in 4′ and 6′ height options.

Features:

• Adjustable captive eye for sternal or dorsal connection
• Versatile, secure use with all SRL types
• 4' or 6' post with top anchor extension bracket
• Durable powder coated stainless steel head unit
• For installation on fixed ladders only
• All mounting hardware included

Specifications:

• Materials: Galvanized steel post and extension bracket, zinc plated steel captive eye and mounting hardware, powder coated stainless steel head unit
• Minimum Breaking Strength: 3,600 lbs.
• ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
• OSHA Weight Capacity: Up to 420 lbs. (191 kg)
• OSHA Standards: 1926.502, 1910.140
