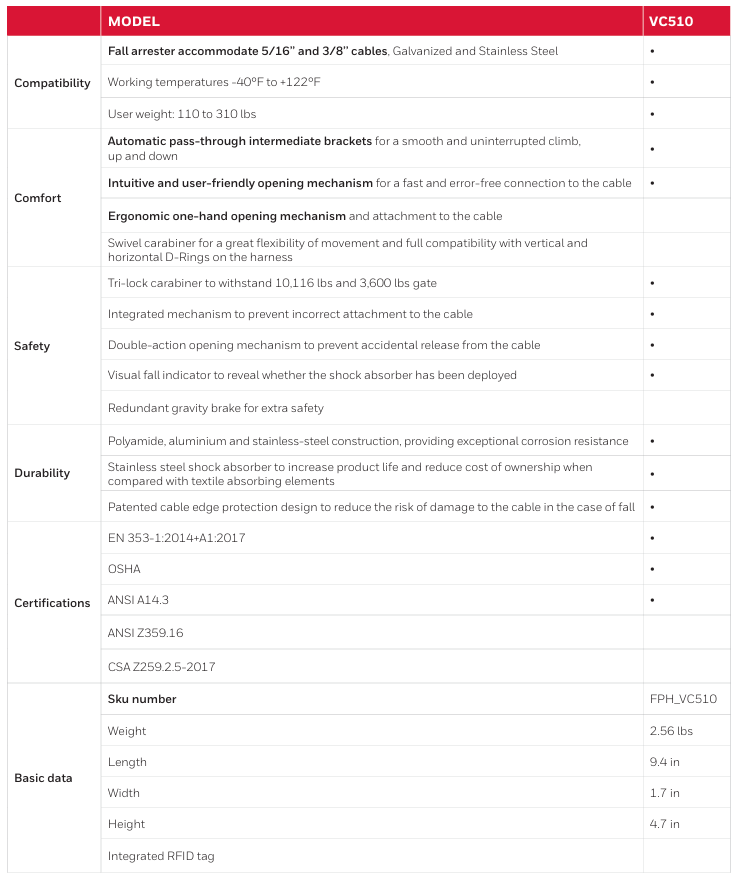

Soll Vi-Go Guided-type fall arrester FPH_VC510 with self-locking carabiner. Ensures the connection between full body harness and Vi-Go vertical wire rope system.
Materials:
- Housing: Stainless Steel
- Shock absorber: Stainless Steel
- Locking device: Stainless Steel
- Cover plate: Aluminium
- Carabiner: Galvanized steel
Technical Specifications:
- Breaking strength: >15 kN / 3300 lbf
- Operating temperature: -40 °C to +70 °C / -40 °F to +158 °F
- Min. user weight: 50 kg / 110 lb
- Max. user weight: 140 kg / 310 lb
Product Specifications:
- Weight: 1,16 kg / 2.56 lb
- Length: 240 mm / 9.4 in
- Width: 44 mm / 1.7 in
- Height: 119 mm / 4.7 in
Main Functions:
- Stainless steel energy absorbing element
- Triple-action, self-locking safety carabiner hook
- To be connected to the sternal anchorage point of the full body harness
Usage:
- Compatible with 8 mm (5/16 in) and 10 mm (3/8 in) wire ropes
- Suitable for use on automatic and manual intermediate brackets
Certifications:
- Meets all applicable OSHA 1926.502, 1910.29 and ANSI A14.3-2008
Quality Control:
- EN ISO 9001 certified and Quality check for each part
