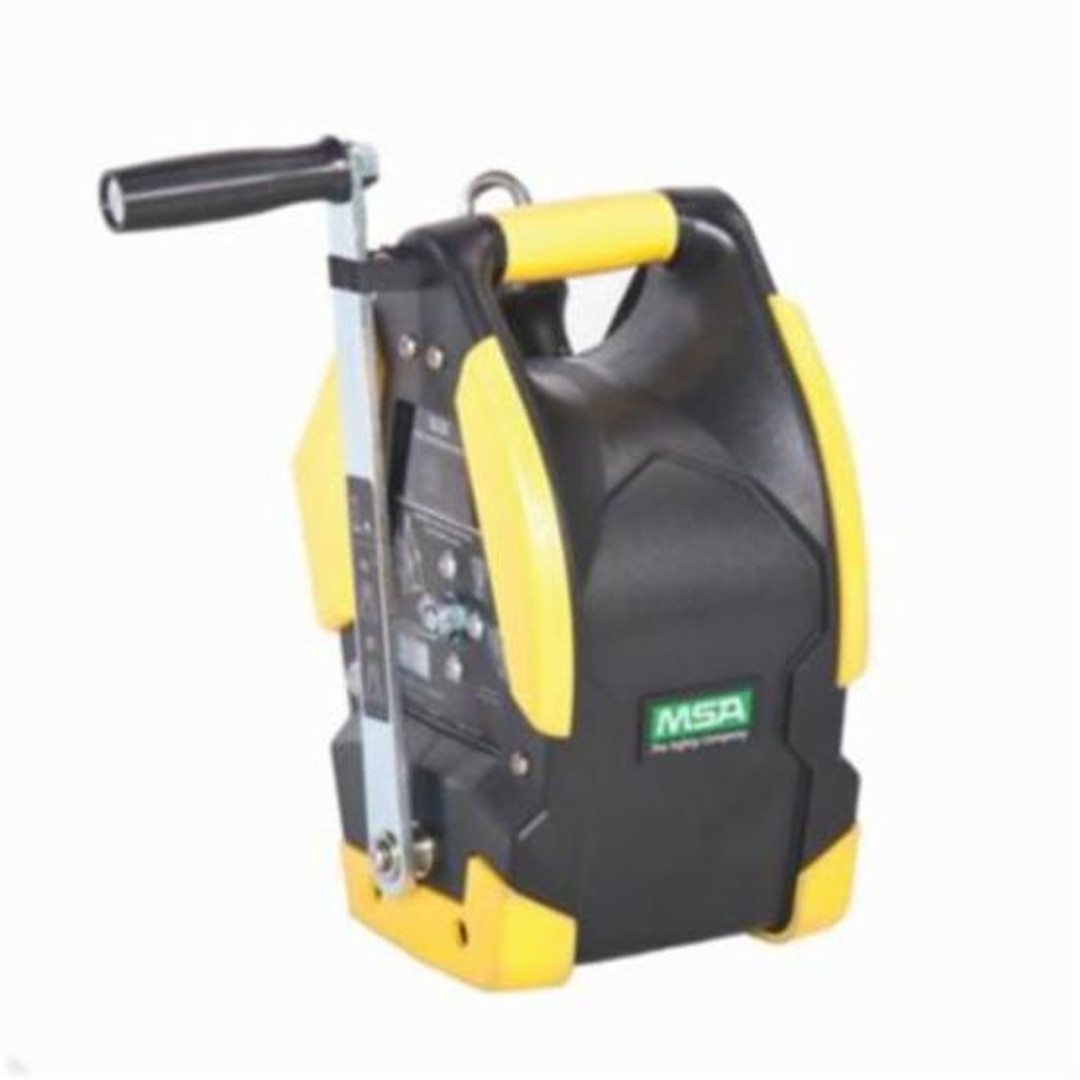

Your Ultimate Solution for Lifting, Lowering and Positioning

The MSA Workman 10147301 Cable Winch is ideal for lifting, lowering and positioning of personnel and materials in confined spaces. Built to last, this winch features rugged thermoplastic housing, designed to withstand even the harshest environments.

Patent-pending bracket attachment design enables quick and easy installation, while the ergonomic carry grip allows for safe and comfortable transportation. The unique, foldable crank handle makes storage a breeze, making it perfect for those on-the-go.

With a maximum workload of 400 lbs. for personnel and 620 lbs. for materials, the MSA 10147301 is the answer to all your lifting needs.

Safety through Durability and Innovation

An open drum wound with 3/16-inch cable ensures efficient and tangle-free operation, while a built-in shock absorber and double-braking system provide an added layer of safety.

The clutched drive mechanism prevents winch overload and reduces the possibility of injury, making it safe to use even in the toughest of conditions. Additionally, the winch features an integral RFID technology, and a self-locking swivel 36C snaphook for added security.

The level wind mechanism ensures a tangle-free cable drum, while the manual foldable crank handle and level wind mechanism allow for smooth and easy operation. With a net weight of only 28.2 lbs., this winch is highly portable and perfect for use in a variety of settings.

Benefits of MSA 10147301

Rugged and Versatile: Experience high performance even in harsh environments.
High Load Capacity: Capable of handling a wide range of tasks with a maximum workload of 400 lbs. for personnel and 620 lbs. for materials.
Easy to Install: Setup is a breeze due to patent-pending bracket attachment design.
Ergonomic Design: Integral ergonomic carry grip and foldable crank handle makes for easy storage.
Built-in Safety Features: Prevent overload and reduce possibility of injury due to clutched drive with added safety and reliability due to double-braking system.
Tangle-Free Cable Drum: Save time and prevent frustration due to the level wind mechanism which ensures a tangle-free cable drum.
High Lifting Speed: Efficient and speedy lifting and lowering with average lifting speed of 13.13 ft/min.
Lightweight and Compact: Easy to transport and use within confined spaces weighing only 28.2 lbs.

The high-quality MSA Workman Winch designed to provide fall protection and reliable rescue capabilities has a solid reputation with its durable construction and ease of use, making it an ideal choice if you’re looking for a reliable system for fall protection and rescue operations in confined spaces or at height.

Recommended Industries

Construction, Fire service, General industry, Mining, Oil & Gas, and Utilities

Applications

Confined Space, Working at Heights, Search & Rescue, Fall Protection

Features

Patent-pending bracket attachment for easy installation
Ergonomic carry grip
Manual foldable crank handle
RFID technology
Self-locking swivel 36C snaphook
Open drum wound with 3/16 in. cable
Built-in shock absorber
Clutched drive to prevent winch overload
Double-braking system
Robust plastic housing and mounting bracket
Level wind mechanism for a tangle-free cable drum

Additional Details

Color: Yellow

Length: 13.307 in.

Width: 11.299 in.

Height: 14.252 in.

Weight: 30.331 lbs.

Standards: ANSI Z359.14

Maximum Personnel Capacity: 400 lbs.

Maximum Material Capacity: 620 lbs.

Minimum Vertical Static Strength: 5,000 lbs.

Line Diameter Cable: 3/16 in.

Minimum Line Strength Cable: 3300 lbs.

Net Weight with 20 m of Line: Cable: 28.2 lbs.

Swivel Snaphook Gate Opening: 0.83 in

Crank Force to Lift: 400 lbs. takes 30 lbs. Of crank force

Cranking Diameter: 22 in.

Avg. Lifting Speed: (400 lb. load) 13.13 ft/min. (4 m/min.)

General

Instruction Manuals

Videos

FAQs

What is the maximum working load of the 10147301 Workman Winch?

The maximum working load of the Workman Winch by MSA is 400 lbs. for personnel and 620 lbs. for materials.

What is the line diameter of the cable used with the Workman Winch?

The line diameter of the cable used with the MSA 10147301 is 3/16 in.

Does the Workman Winch come with a swivel snaphook?

The MSA 10147301 Workman Winch includes a self-locking swivel 36C snaphook.

What approvals/standards does the Workman Winch comply with?

The Workman Winch complies with ANSI Z359.1 standards.

What is the crank force required to lift 400 lbs. with the Workman Winch?

The crank force required to lift 400 lbs. with the MSA 10147301 Workman Winch is 30 lbs.

Is the Workman Winch easy to assemble and install?

The Workman Winch features a patent-pending bracket attachment design for easy installation and a foldable crank handle for simple storage.

Does the Workman Winch have any safety features?

The 10147301 Workman Winch has a clutched drive to prevent winch overload and reduce the possibility of injury to a person if caught on a structural member during lifting, as well as a double-braking system for added safety.

Is the Workman Winch built to withstand harsh environments?

The MSA Winch is built with robust plastic housing and a mounting bracket to ensure high performance within the harshest environments.
