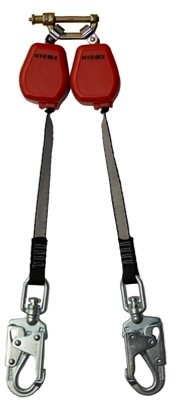

Guardian 32052 Checkmate Dual Atom-Xtreme Web SRL

Guardian ATOM-XTREME lightweight fall arrest block. ATOM-XTREME is the smallest and lightest fall arrest block in its class in the world. Its lightweight chassis, PC ABS housing and webbing made with Dyneema contribute to its outstanding strength and performance. The ATOM XTREME range is a totally new concept in design engineering and has a revolutionary triple micro pawls lockout system and a full internal braking mechanism. The ATOM-X-107 can be used for TIE-BACK anchorage around a suitable structure, see TDS 183. The ATOM XTREME can also be used for foot level tie with a maximum user weight of 100 kg (220 lb), (excludes ATOM-X-107). All models can be linked together with a dual kit to make a twin leg variant

• Bottom Connector EN362 & ANSI Z359.12 rated snap/scaff hook including ANSI 3600 lb gate rating
• Webbing: Webbing made with Dyneema = 20 mm - minimum breaking load 15 kN
• Capacity: 1.8 m (6 ft)
• Maximum Arresting Force: 8 kN (1800 lb) – ANSI 6 kN (1350 lb) – EN
• PC ABS High strength and rigidity UV stabilised as External Housings
• Steel zinc-plated & passivated as Shaft
• Hot rolled steel zinc-plated & passivated as Chassis
• Steel, hardened - zinc-plated & passivated as Pawl
• PTFE as Bearing Plates
• Aluminum or steel connector options as Connectors
• Dyneema, the world’s strongest fiber are trademarks of DSM. Use of these trademarks is prohibited unless strictly authorized
• Average Arresting Force: 6 kN (1350 lb) or less – ANSI 4 kN (900 lb) or less – EN
• Overhead anchorage (no freefall): 130-420 lb (59-190kg) inc. tools and equipment
• Freefall Max. 2 ft: 130-310 lb (59-141 kg) inc. tools and equipment
