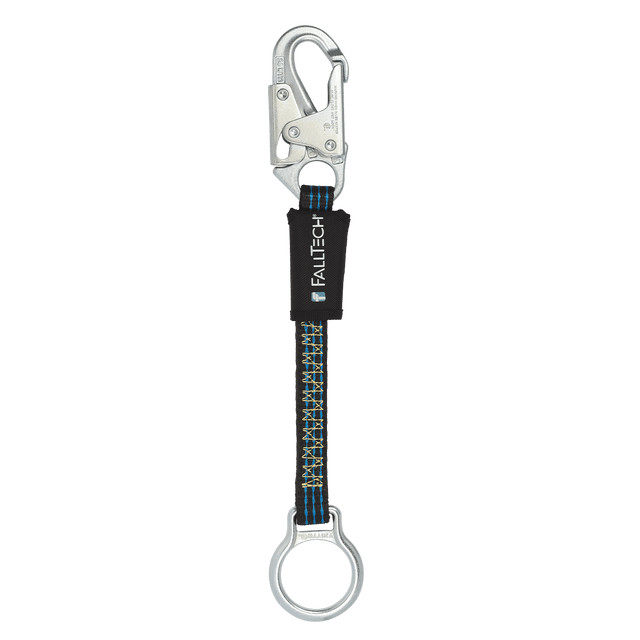

Falltech 8365 EdgeCore 18" Dorsal D-Ring Extender

18" EdgeCore Dorsal D-Ring Extender

Core Features:

• Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs
• Built with FallTech's exclusive EdgeCore™ synthetic lifeline used for leading edge protection in Class 2 SRL-Ps
• Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard
• Complies with ANSI Z359.11-2021 and Z359.3-2019

Model Features:

• Model 8365: Includes alloy steel snap hook for harness attachment
  • Webbing: EdgeCore; 5,000 lb min. static strength
  • D-ring: Plated alloy steel; 5,000 lb min. static strength
  • Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength


• Model 8365L: Features choke-loop for harness attachment with reduced weight
  • Webbing: EdgeCore; 5,000 lb min. static strength
  • D-ring: Plated alloy steel; 5,000 lb min. static strength
  • Choke-loop: EdgeCore; 5,000 lb min. static strength


• Model 8365LD: Features choke-loop for harness attachment with reduced weight
  • Webbing: EdgeCore; 5,000 lb min. static strength
  • D-ring: Overmolded alloy steel; 5,000 lb min. static strength
  • Choke-loop: EdgeCore; 5,000 lb min. static strength


• Model 8365P: Includes alloy steel dorsal connector for harness attachment, keeping the dorsal D-ring free for other connections
  • Webbing: EdgeCore; 5,000 lb min. static strength
  • D-ring: Plated alloy steel; 5,000 lb min. static strength
  • Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

Specifications:

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliance:

• OSHA 1926.502 and 1910.66
• ANSI Z359.11-2021 and Z359.3-2019
